ALFA LAVAL PUMPS MECHANICAL SEALS

Model: GW92-42
Place of Origin: Zhejiang,China (Mainland)
Standard or Nonstandard: Standard
Style: Mechanical Seal
Material: Metal
Brand Name: GuoWei
Function: for ALFA LAVAL PUMPS
Certificate: ISO9001
Export Area: Africa,East Asia,Europe

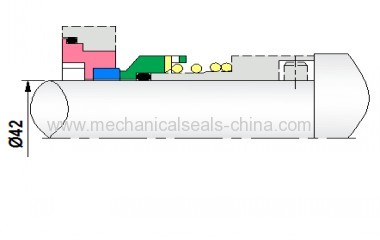

SIZE: 42MM

inquiry

skype basketAdd to Basket  Edit

Share |

Product Description

Payment & Shipping Terms Supply Capacity
Trade Term:FOB,CFR,DATProduction Capacity:100 Sets/Month
Payment Terms:L/C, T/T, WUPacking:Carton
Min. Order:5 Set/SetsDelivery Date:25days
Means of Transport:Ocean, Air, Land


All 35mm & 42mm LKH seals, models 5 thru 110.As Alfa Laval's premium range of centrifugal pumps, the LKH centrifugal pumps are distinguished by high efficiency, low energy consumption, several options, and a wide range of flow rates and pressures.

Operating Limits:
Temperature: -10º C to +150º C
Pressure: ≤ 0.8MPa
Speed: ≤ 12m/s
Standard Size: 10-60mm

Materials:
Stationary Ring: Ceramic(Alumina), Silicon Carbide Reaction Bonded
Rotary Ring: Q5, Resin Impregnated Carbon Graphite(Furan), Silicon Carbide Reaction Bonded
Secondary Seal: Fluorocarbon Rubber(Viton), Nitrile(NBR), Ethylene Propylene(EPDM)
Spring and Metal Parts: 304/316


it can replace most model of single coil spring, multiple spring and wave spring mechanical seal. Bellows is made from low-cost metal bellows mechanical seal but high performance, robust design and reliable for general applications.

It is of non-thrust construction without slip seal ring, free of compensated loop, avoiding friction with shaft or shaft sleeve.Having excellent matching property, its jackscrew positioning widens its adjustment range.
The revolving design enables the bellows to perform its function of self-cleaning which will avoid its blocking and loss of elasticity.

If you have a requirement for a Alfa Laval mechanical seal or any other Alfa Laval spare part, then please don't hesitate to contact us and we will endeavour to respond to your enquiry within 8 hours.


Designed to meet the hygienic requirements of the dairy, food and beverage and personal care industries, LKH centrifugal pumps increase process productivity while providing high efficiency and gentle product handling.






Category: Alfa Laval Pump Seals

Related Category: Flygt pump Seals  Grundfos Pump Seals  APV Pump Seals  LOWARA PUMP SEAL  EMU Pump Seal
