o-ring mechanical seal. WAVE SPRING 1688W SEALS. ALFA LAVAL SSP SR RERIES PUMP SEALS

Model: GW68B
Place of Origin: Zhejiang,China (Mainland)
Standard or Nonstandard: Standard
Style: Mechanical Seal
Material: Metal
Brand Name: GuoWei
Function: for Pump,Compressor
Certificate: ISO9001
Export Area: Africa,East Asia,Europe
type: 1688W
MATERIAL: CARBON. SILICON, TUNGSTENCARBIDE
USED: ALFA LAVAL SSP ST PUMPS

inquiry

skype basketAdd to Basket  Edit

Share |

Product Description

Payment & Shipping Terms Supply Capacity
Payment Terms:L/C, T/TProduction Capacity:200 Sets/Month
Min. Order:5 Set/SetsPacking:Carton
Means of Transport:Ocean, LandDelivery Date:25days


Specifications :

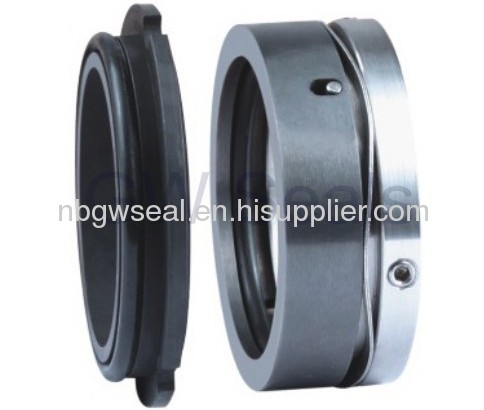

    O-ring mounted seal.Equivolent to AES W03 type seal.  Used for SR pump series pumps from S.S.P. Monolothic  head material .

We specialize in design and manufacturer the complicated and corrosive media, high temperature, high speed, high press etc mechanical seals according to clients requested. The series of high performance mechanical seals for Petroleum Equipment, such as chemical process pump, oil and gas, petrochemicals pump, mixer, agitator, compressor, etc.

And exported to the USA, Canada, Germany, Japan and Middle East. We execute such guild line as leading minds, client first, polish design, top-ranking quality. In the 16 years hostory, we've brought up a hard working and innovative team, who speared every effort to meet the client's needs by execute SPP and good after-sales services.

Application:
The mechanical seal range is designed for universal application and the interchangeable parts concept is ideal forthrust ring is retained by the drive lugs preve stock rationalization.The seal faces are loosely inserted and can be easily exchanged, the nting the spring falling out.Other special technical features include stationary seal stop and limitatlion of spring stroke to prevent excessive carbon wear.
These seals are highly reliable in performance. And popularly used in food,drink, dairy product and pharmacy industries.

Material:

Rotary face:  stainless steel, tungsten carbide

Statioanry Ring:  CARBON, TINGSTEN CARBIDE.

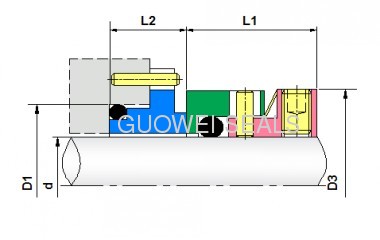

PUMP ref:SizeD1D3L1L2
SR12030.031.019.110.7
SR23041.041.019.110.9
SR33547.045.521.112.2
SR44558.058.221.111.6
SR55570.072.022.113.0
SR67592.096.025.814.5
